Results
This page of the documentation explains the results of OpenRAM.
Table of Contents
- Small Layouts
- Relative Planar Bitcells
- SRAM Area
- Generated Layout by OpenRAM
- Timing and Density Results for Generated SRAMs
- Comparison with Fabricated SRAMs
- Conclusions
Small Layouts
 |
 |
|---|---|

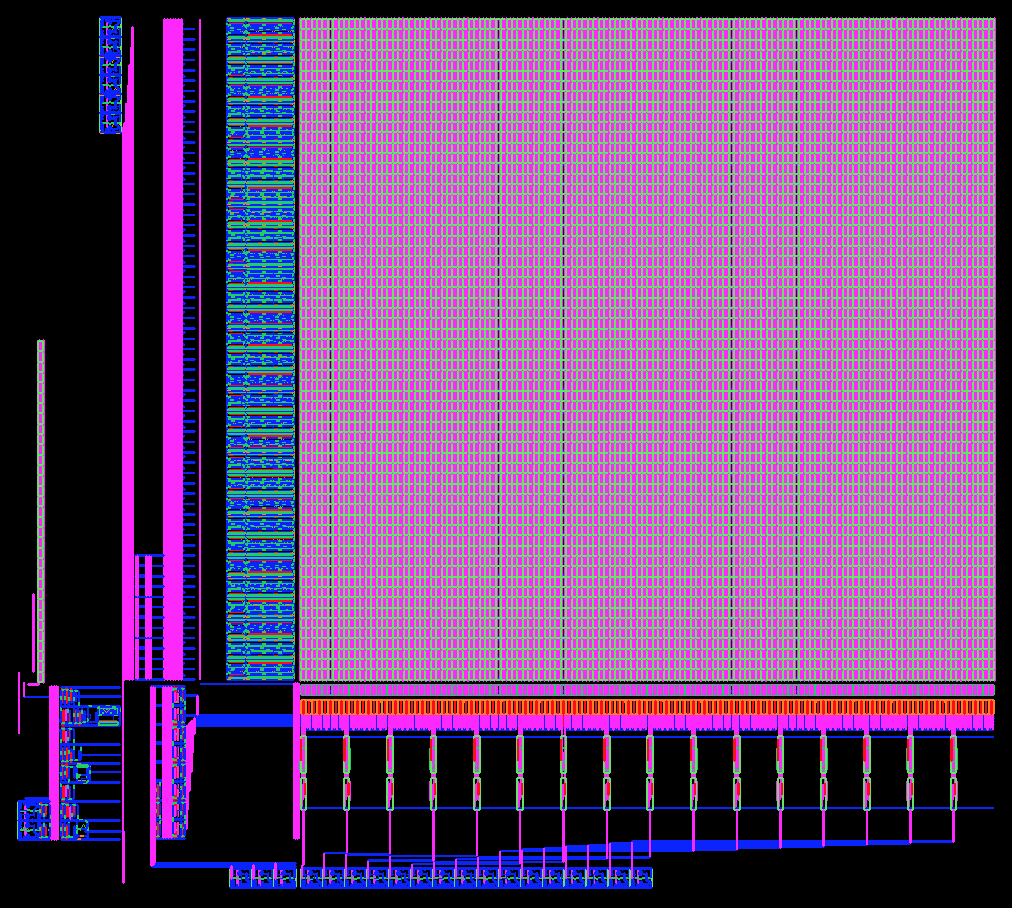

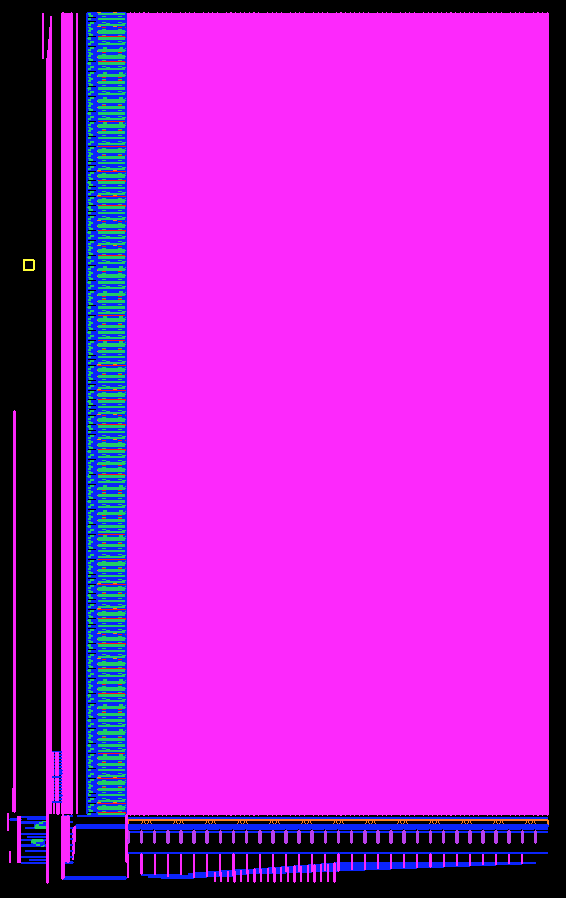

| 512 x 16b x 1rw FreePDK45 | 2048 x 32b x 1rw FreePDK45 |
Relative Planar Bitcells (0.35um SCMOS)
 |
 |
 |
|---|---|---|
| Standard 6T (1rw) 6.8um x 9.2um | Isolated Read 10T (1rw, 1r) 10.9um x 13.9um | DFF 21.9um x 21.2um (from OSU standard cell library) |

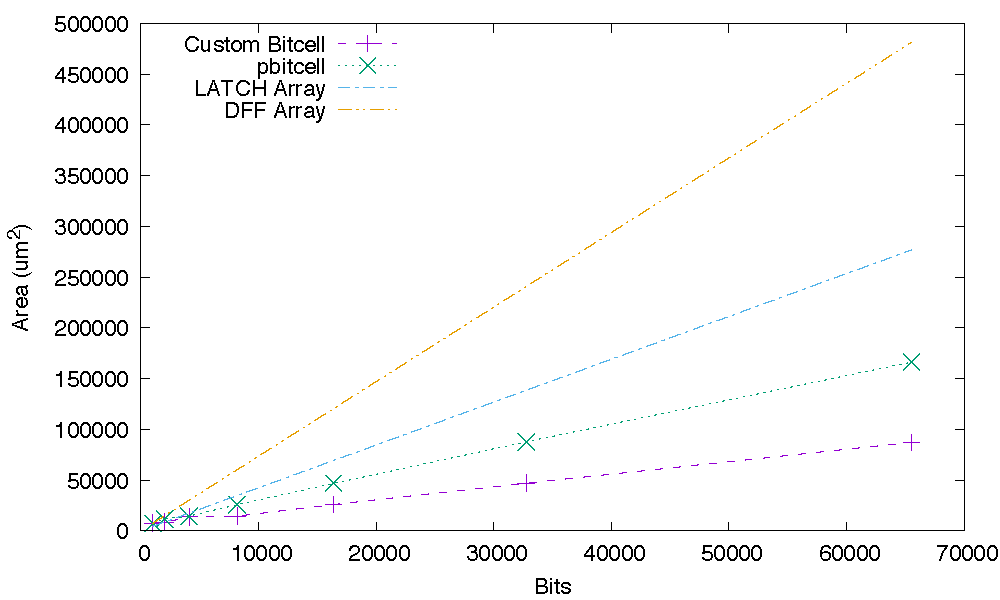

SRAM Area
Generated Layout by OpenRAM for a multiport (6R/2W) SRAM in 32 nm SOI CMOS Technology

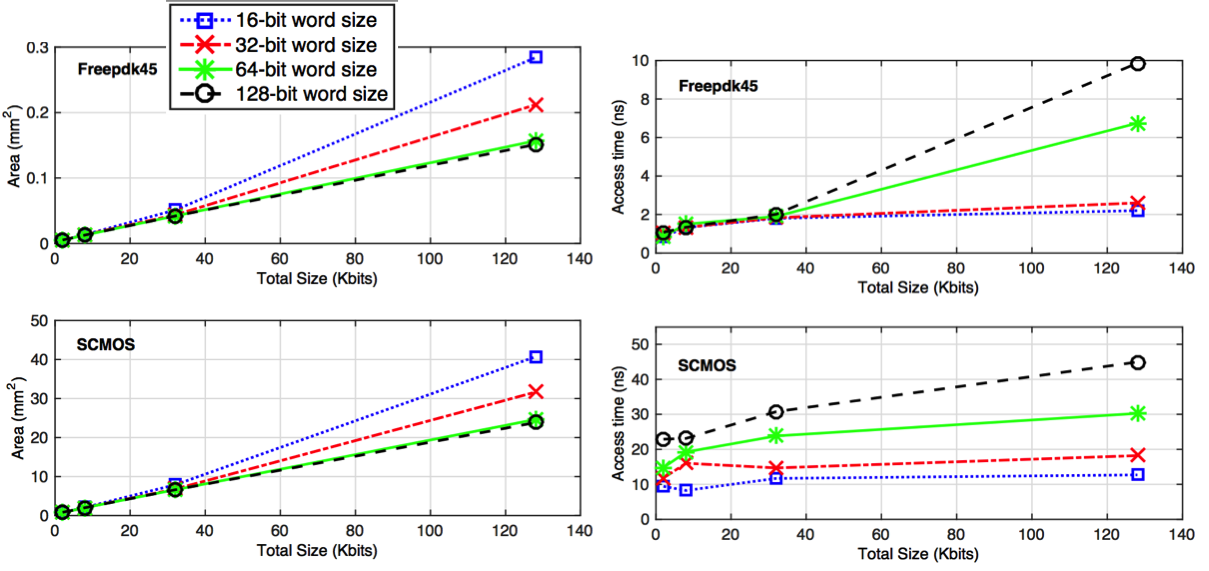

Timing and Density Results for Generated SRAMs
Comparison with Fabricated SRAMs
\textrm{Reference} |
\textrm{Feature Size} |
\textrm{Technology} |
\textrm{Density } (Mb/mm^2) |
|---|---|---|---|
\textrm{IEEE-VLSI'08} |
65 nm |
\textrm{CMOS} |
0.7700 |
\textrm{JSSC'11} |
45 nm |
\textrm{CMOS} |
0.3300 |
\textrm{JSSC'13} |
40 nm |
\textrm{CMOS} |
0.9400 |
\textrm{OpenRAM} |
45 nm |
\textrm{FreePDK45} |
0.8260 |
\textrm{JSSC'92} |
0.5 \mu m |
\textrm{CMOS} |
0.0036 |
\textrm{JSSC'94} |
0.5 \mu m |
\textrm{BICMOS} |
0.0020 |
\textrm{JSSC'99} |
0.5 \mu m |
\textrm{CMOS} |
0.0050 |
\textrm{OpenRAM} |
0.5 \mu m |
\textrm{SCMOS} |
0.0050 |
Conclusions
- The main motivation behind OpenRAM is to promote and simplify memory-related research in academia and provides a platform to implement and test new memory designs.
- OpenRAM is open-sourced, flexible, and portable and can be adapted to various technologies.
- OpenRAM generates the circuit, functional model, and layout of variable-sized SRAMs.
- OpenRAM provides a memory characterizer for synthesis timing/power models.
- We are also actively introducing new features, such as non-6T memories, variability characterization, word-line segmenting, characterization speed-up, etc.
